What components does the compressed air processing unit of AW Filter Pressure Reducing Valve contain?

The compressed air processing unit of AW Filter Pressure Reducing Valve usually contains the following key components:

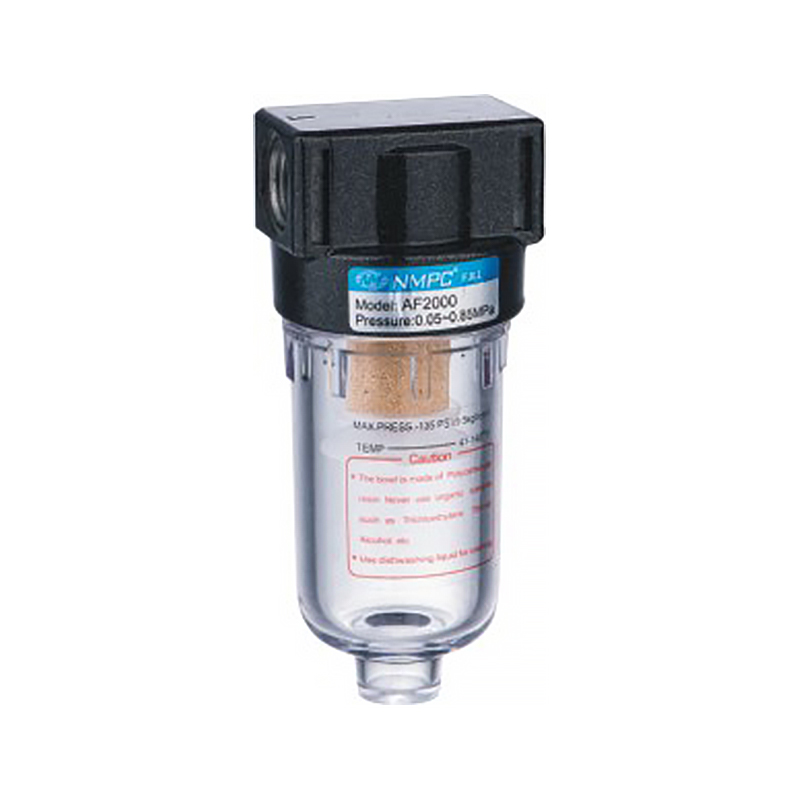

1. Filter:
Function: Used to remove impurities such as dust, moisture, oil, etc. in compressed air to protect downstream pneumatic components from damage.
Type: May include particle filter, oil-water separator, etc., depending on the application scenario and compressed air quality requirements.

2. Pressure reducing valve:
Function: Regulate and stabilize the output pressure of compressed air to meet the working pressure requirements of different pneumatic equipment.
Working principle: By adjusting the pressure regulating mechanism inside the pressure reducing valve, the size of the outlet pressure can be controlled.

3. Pressure gauge:
Function: Display the output pressure of the compressed air processing unit to help users monitor and adjust the pressure setting.
Type: May include pointer pressure gauge, digital pressure gauge, etc., depending on user preference and accuracy requirements.

4. Safety valve:
Function: When the internal pressure of the compressed air processing unit exceeds the set value, the safety valve will automatically open and release excess pressure to prevent system overload or damage.
Importance: The safety valve is an important safety device in the compressed air handling unit, which can ensure the safe operation of the system.

5. Drain valve:
Function: It is used to discharge the condensed water accumulated in the compressed air handling unit to prevent moisture from damaging the pneumatic components.
Operation: The drain valve is usually designed for manual or automatic drainage, depending on the actual needs of the user.

6. Other auxiliary components:
Including connecting pipes, joints, brackets, etc., which are used to connect the above components together and ensure the stability and reliability of the entire compressed air handling unit.
