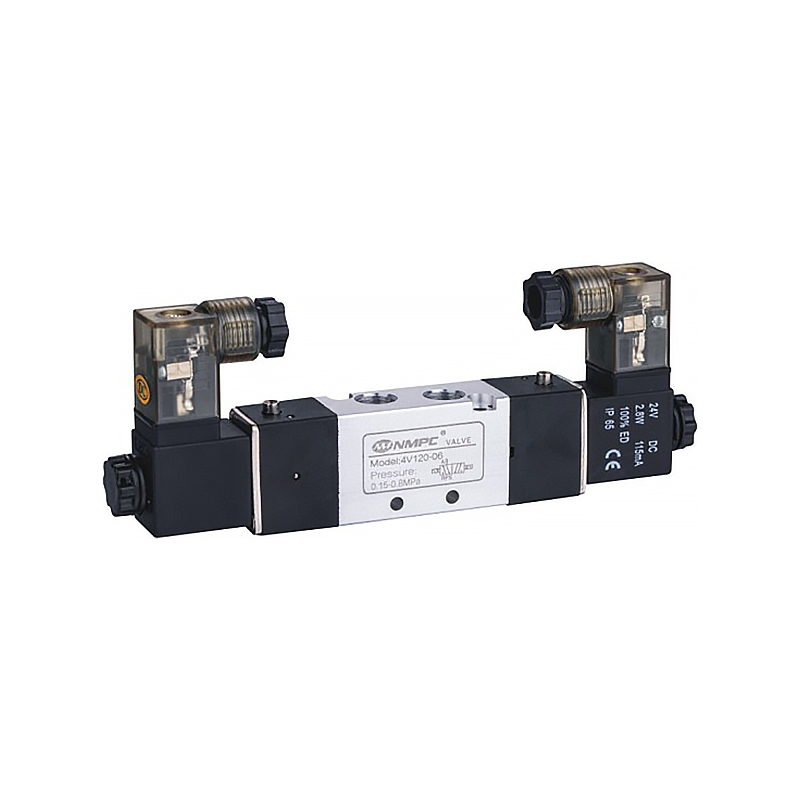

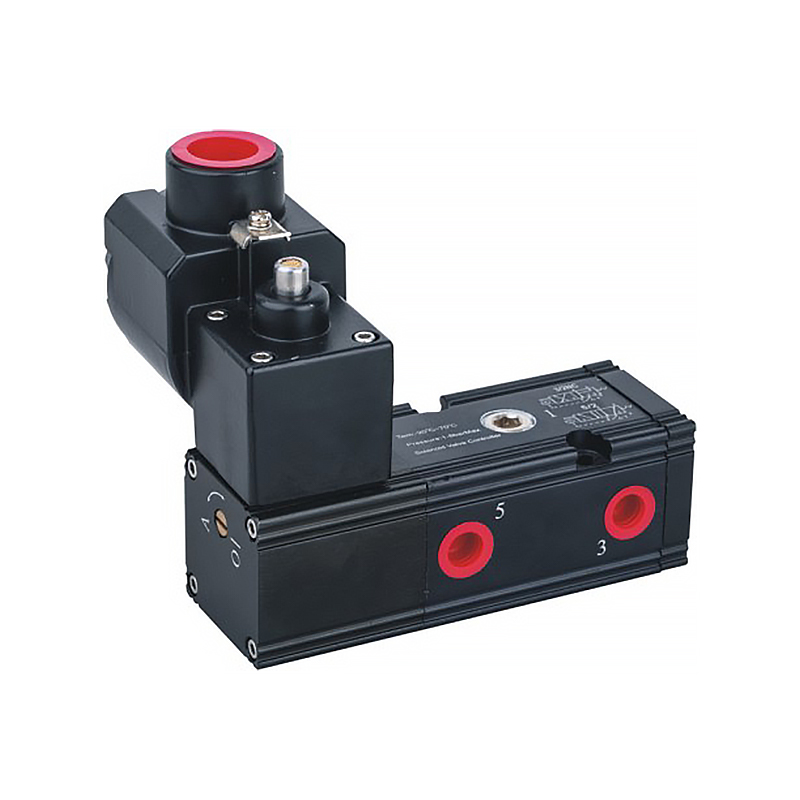

4V100/4A100/3V100/3A Solenoid Valve, Pneumatic Valve
Classification:Directional Control Valves

4V100/4A100/3V100/3A Solenoid Valve, Pneumatic Valve

Feature:

•Integral slot piston structure

•Process valve hole with special high precision finishing process

•Beautiful appearance

•Good reverser

•Reliable performance

•Seal wear can automatic compensate

Get a Quote

Ordering Code

4V  1  10  -  06  B  -  AC220V  -  W
➊   ❷  ❸       ❹   ❺          ❻             ❼

Symbol Content
  Specification
4V 5/2(3) way solenoid valve
4A 5/2(3) way pneumaticcontrol valve
3V 3/2 way solenoid valve
3A 3/2 way pneumatic control valve
Series
100 Series
Coil and position
10 Single-head double-position
20 Double-head double- position
30C Double-head three. position close centre
30E Double head three position exhaust centre
30P Double-head three position Pressure centre
Port size
M5 M5x0.8
06 1/8"
Joint pipe form and inital state
Blank Pipe connection type
B

5/2 way plate connection type
5/3 way plate connection type
NC 3/2 way normal close type
NO 3/2 way normal open type
Coil voltage
DC12V DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
Wiring
Blank Without light terminal
LD Brown with light termial
LD1 White with light terminal
W Lead wire

Specification

Model 4V110-M5 4V120-M5 4V130C-M5 4V130E-M5 4V130P-M5 4V110-06 4V120-06 4V130C-06 4V130E-06 4V130P-06
4A110-M5 4A120-M5 4A130C-M5 4A130E-M5 4A130P-M5 4A110-06 4A120-06 4A130C-06 4A130E-06 4A130P-06
Position And Way Two-position Five-way Three-position Five-way Two-position Five-way Three-position Five-way
Effective sectional Area 10mm2(CV=0.56) 7mm2(CV=0.40) 12mm2(CV=0.67) 9mm2(CV=0.05)
Model 3V110-M5 3V120-M5 3A110-M5 3A120-M5 3V110-06 3V120-06 3A110-06 3A120-06
Joint Pipe Bore Air Inlet=Air Outlet=Exhaust=M5X0.8 Air Inlet=Air Outlet=Exhaust=G1/8,Exhaust=G1/8
Working Medium 40 Micron Filtered Air
Montion Patten Inner Guide Type
Working pressure 0.15-0.8Mpa
Max.Pressure Resistance 1.2Mpa
Operating Temperature 5-50.C
Voltage Range plus-minus 10%
Power Consumption AC:2.5VA DC:2.5W
Insulation &Protection Class F class.IP65
Wiring Form Lead Wire or Connector type
Highest Action Frequency 5 Cylcle /Sec
Shortest Excitation Time 0.05 Second

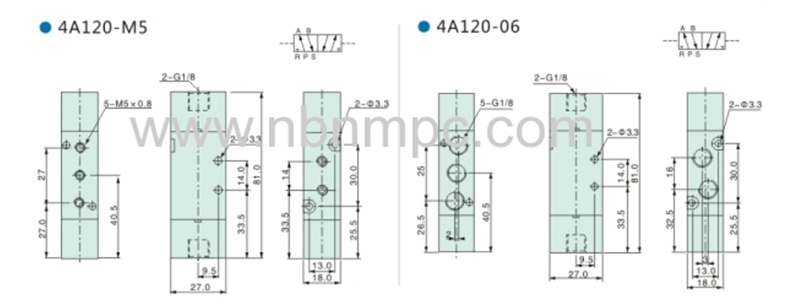

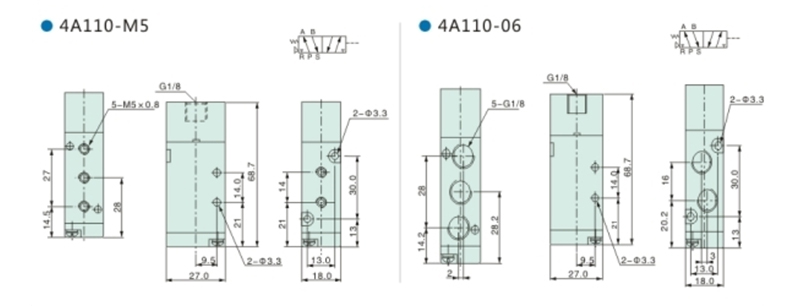

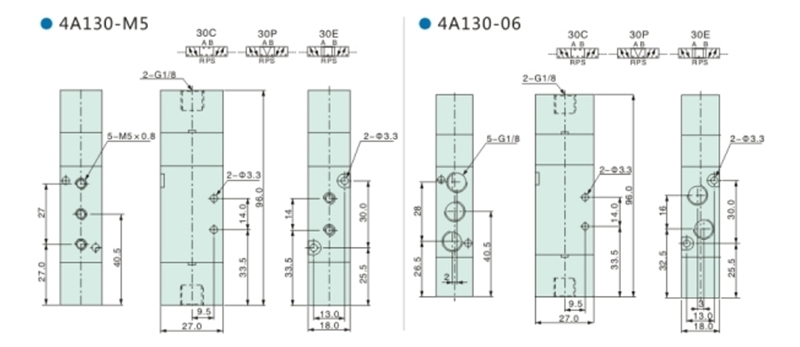

Overall Dimension Drawing(mm)
