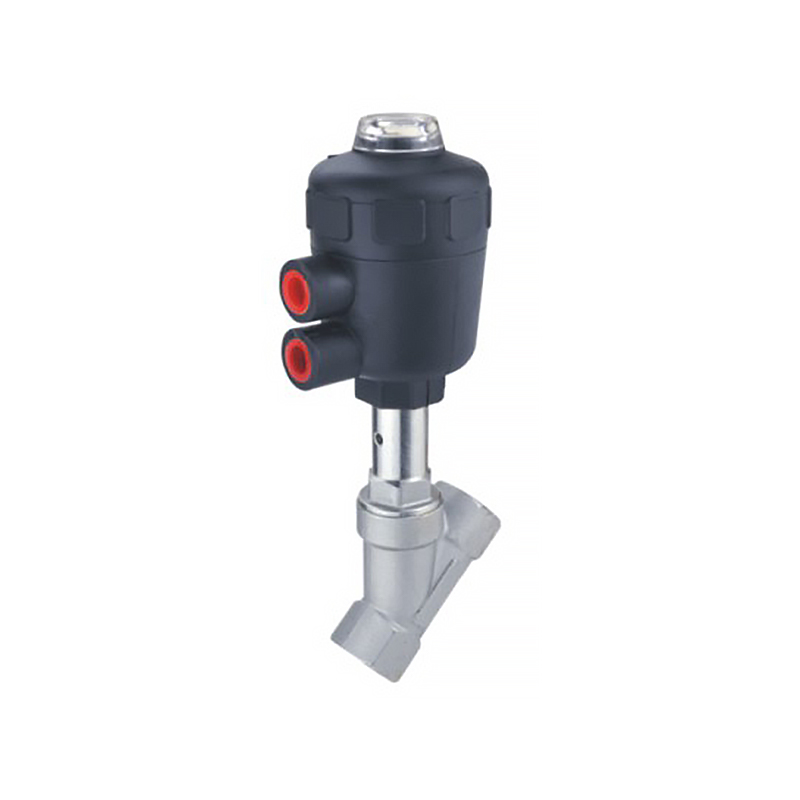

Custom BJZF Plastic Head Angle Seat Valve

Home / Product / Valves / Angle Seat Valves / BJZF Plastic Head Angle Seat Valve
  • BJZF Plastic Head Angle Seat Valve
BJZF Plastic Head Angle Seat Valve
Classification:Angle Seat Valves

BJZF Plastic Head Angle Seat Valve

Feature:
Get a Quote

Ordering Code

BJZF -  15 - D - 1  - NC
➊    ❷  ❸       ❹   ❺

Symbol Content
  Specification
BJZF Angle Valve
Orifice
15, 20, 25, 32, 40, 50
Acting Device Material
D Bronze
Blank  S.Steel
Connecting Type
F
1
2
Normal Close
NC Normal Close
NO Normal Open

Specification

Specification

Item

Normal Closed

ZF-15B

ZF-20B

ZF-25B

ZF-32B

ZF-40B

ZF-50B

ZF-65B

Normal open

ZF-15T

ZF-20T

ZF-25T

ZF-32T

ZF-40T

ZF-50T

ZF-65T

Material of body

Stainless Steel

Operating method

Plunger Pilot

Applicable medium

Air, water, oil, Steam(50CST Bellow)

Pipe size

ZG1/2

ZG3/4

ZG1

ZG1 1/4

ZG1 1/2

ZG2

ZG2 1/2

Nominal diameter mm

13

20

25

32

40

50

65

Kv (m3/h)

4.2

8

19

27.5

42

55

90

Pressure range Mpa

0~1.6

0~1.1

0~1.1

0~1.5

0~1.25

0~1.1

0~0.52

Min. control pressure mpa

0.39

0.39

0.42

0.5

0.44

0.32

0.32

Executor dimension  φmm

50

50

63

80

100

125

125
