Custom MA Stainless Steel Mini Cylinder

Home / Product / Air Cylinders / Linear Cylinders / MA Stainless Steel Mini Cylinder
  • MA Stainless Steel Mini Cylinder

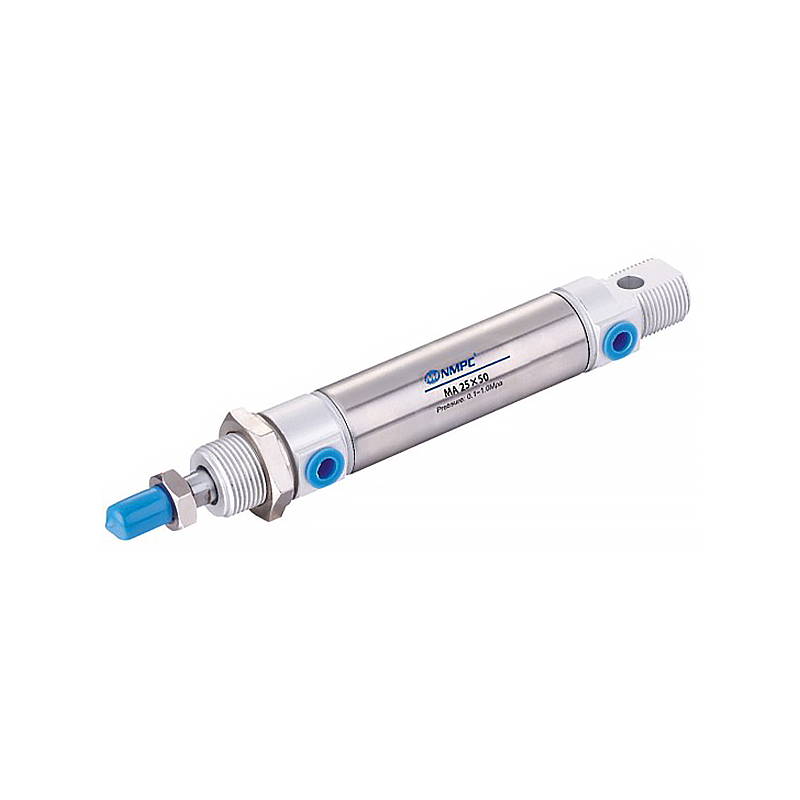

MA Stainless Steel Mini Cylinder
Classification:Linear Cylinders

MA Stainless Steel Mini Cylinder

Feature:

 1.  mini stainless steel mini air cylinder

 2, heteromorphosis and bidirectional seal structure of piston seal. Compacted size. Oil stock;

 3, front and rear cover is with fixed anti-shock washer to relief the shifting shock.

 4, different rear covers make assembly more convenient.

 5, front and rear cover are riveted and rolled. Connection reliable.

 6, high precision stainless steel tube, high strength, anti corrosion.

Get a Quote

Ordering Code

MAL - U -32  X 50 - 10 - S - E -LB
➊   ❷  ❸       ❹   ❺          ❻             ❼

Symbol Content
 Type
MAL Double Acting
MSAL Single Acting Spring-out
MTAL Single Acting Spring-in
MALD Double-shaft
MALJ Double-shaft with adjustable stroke
Back Form
Blank Standard with eye mounting
CM Standard with round back cover
U Standard with flat back cover
Bore
16/20/25/32/40

08 1/4"
10 3/8"
Stroke
Adjustable Stroke
10: 10mm 20 : 20mm 30: 30mm 50: 50mm 70: 70mm 100: 100mm
Magnet
S With magnet
Blank Without magnet
Piston Rod Material
Blank Carbon steel
E Stainless steel
Mountings
Blank Basic mountings
LB Front and back mounting
FA Front mounting flange
FB Back mounting flange
SDB Back hinge

Specification

nner diameter(mm)

16

20

25

32

40

50

63

Working type

MSA,MTA

Single acting

-

MAR

-

Double acting

MA,MAD,MAJ

Double acting

-

MAC,MACD,MACJ

-

double acting with cushion

Working medium

Air (filtered by 40μ filter element)

Working pressure

Double acting

              0.1~1.0Mpa(15~145Psi)

Single acting

0.2~1.0Mpa(28~145Psi)

assured pressure

1.5 Mpa(215Psi)

Working temperature

-20~70℃

Working speed range

Single acting:50~800mm/S

Doubleacting:30~800mm/s

Stroke tolerance

Cushion type

 MAC,MACD,MACJ adjustable, others:anti- shock

Port size

M5X0.8

PT1/8

PT1/4
