KHB(BKH)/KHM(MKH) International Standard Ball Valve/High Pressure Ball Valve
Classification:Manual Valves

KHB(BKH)/KHM(MKH) International Standard Ball Valve/High Pressure Ball Valve

Feature:
Get a Quote

Ordering Code

KHB(BKH)   G1/2  1  1  1  2  01 X -
➊   ❷  ❸   ❹   ❺     ❻      ❼   ❽   ❾

Symbol Content
Type

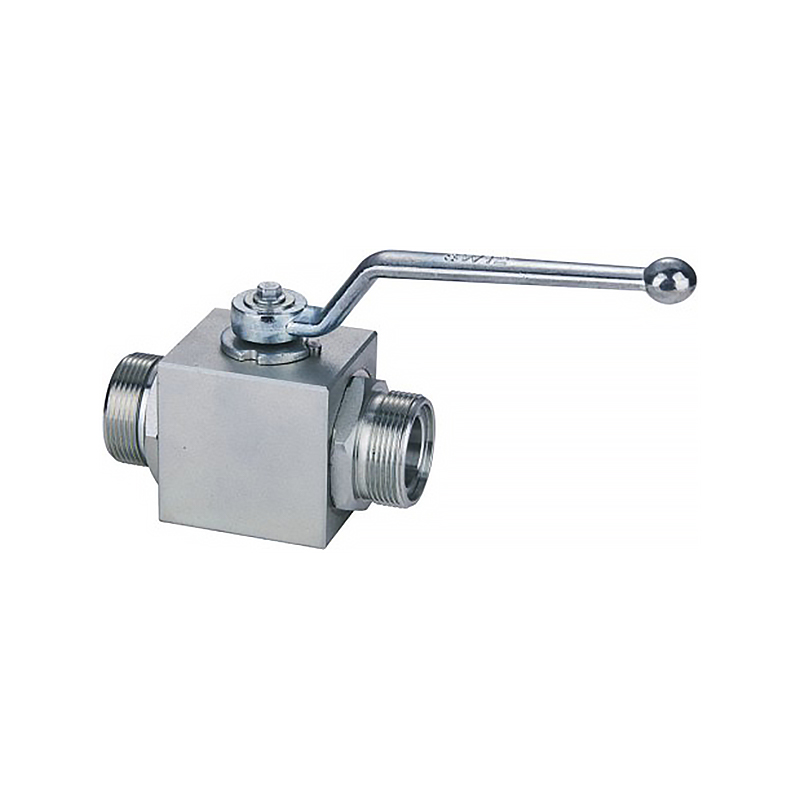

KHB(BKH) DN04-25 Valve Block Type Ball Valve DN04-25

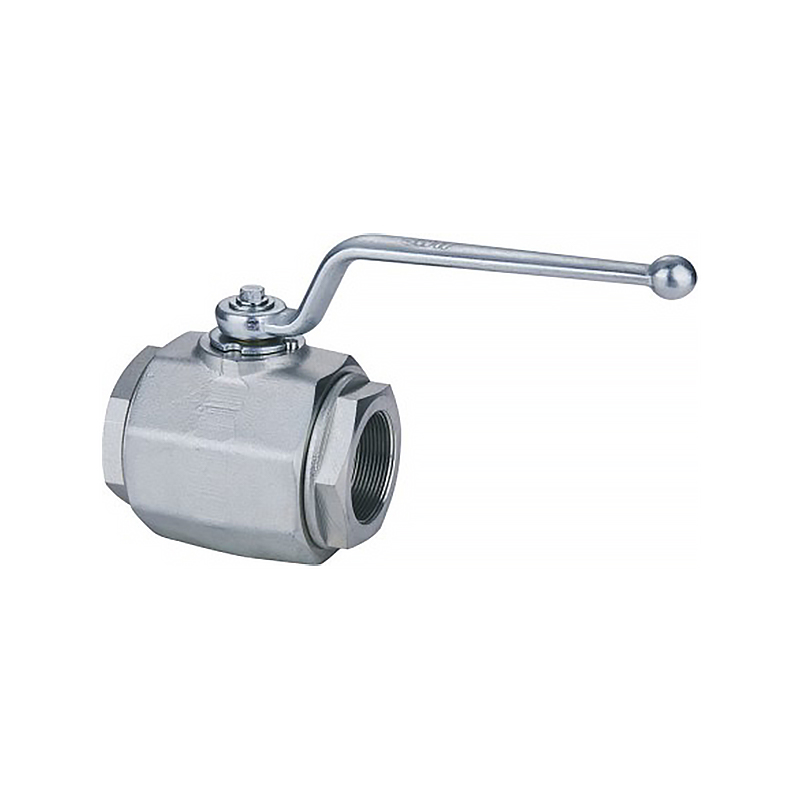

KHM(MKH) DN32-50 Sleeve Type Ball Valve DN32-50
Connecting methods
Thread Specification Or Pipe Outer Diameter And Connection Form Comparison Table
Reference table for thread specifications or pipe extemal diameter and connecting methods
NPT(PT) / NPT (PT) connection American standard NPT (PT)
UN/ UNF/ UN/UNF internal thread connection
Valve body and connector material
1 Carbon steel
4 Stainless steel
Valve body and control core shaft material
1 Alloy steel
2 Braze
4 Stainless steel
❺ Ball Body Sealing Material
1 POM
Sealing ring materials for connector and control core shaft
2 NBR
4 Fluororubber
Handle type
01 Straight Handle On Aluminum Hoop Handle (Ag)
02 Aluminum Hoop Handle. Crank (Ak)
03 Cast Zinc Hoop Handle. Straight Shank (Zg)
04 Cast Zinc Handle With Mounting Bolts, Crank (Zk)
06 Steel Handle With Mounting Bolts, Crank (Sk)
09 Without Handle
Series(by the manufacturer)
Surface protection
None Phosphorization
G Yellow zinc plating
W Environmental protection zinc (trivalency)
