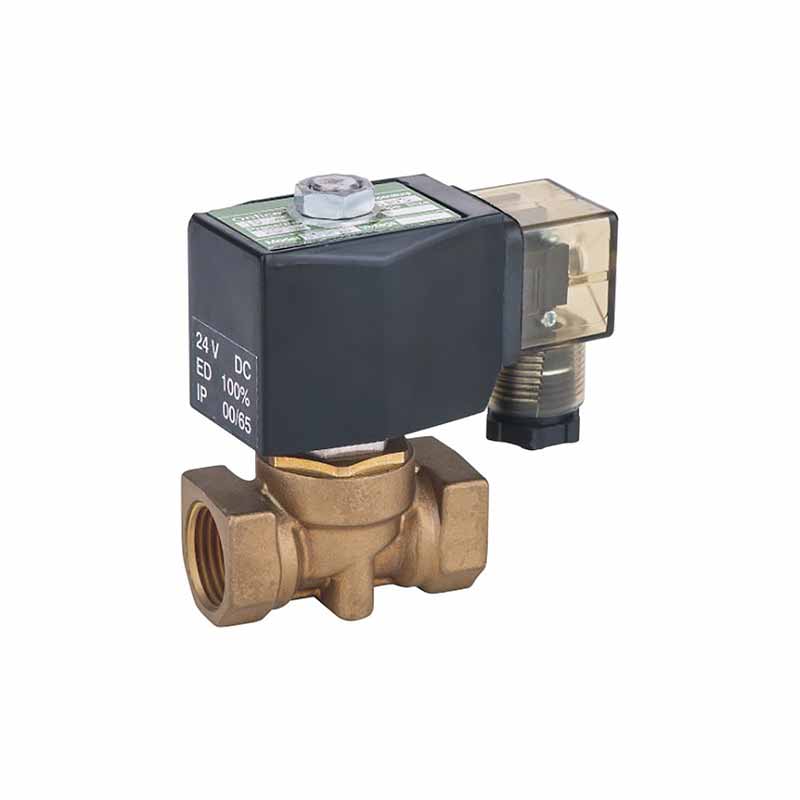

Custom 2W Two-Position Two-Way Direct-Acting Solenoid Valve

Home / Product / Valves / Solenoid Valves / 2W Two-Position Two-Way Direct-Acting Solenoid Valve
  • 2W Two-Position Two-Way Direct-Acting Solenoid Valve
  • 2W Two-Position Two-Way Direct-Acting Solenoid Valve

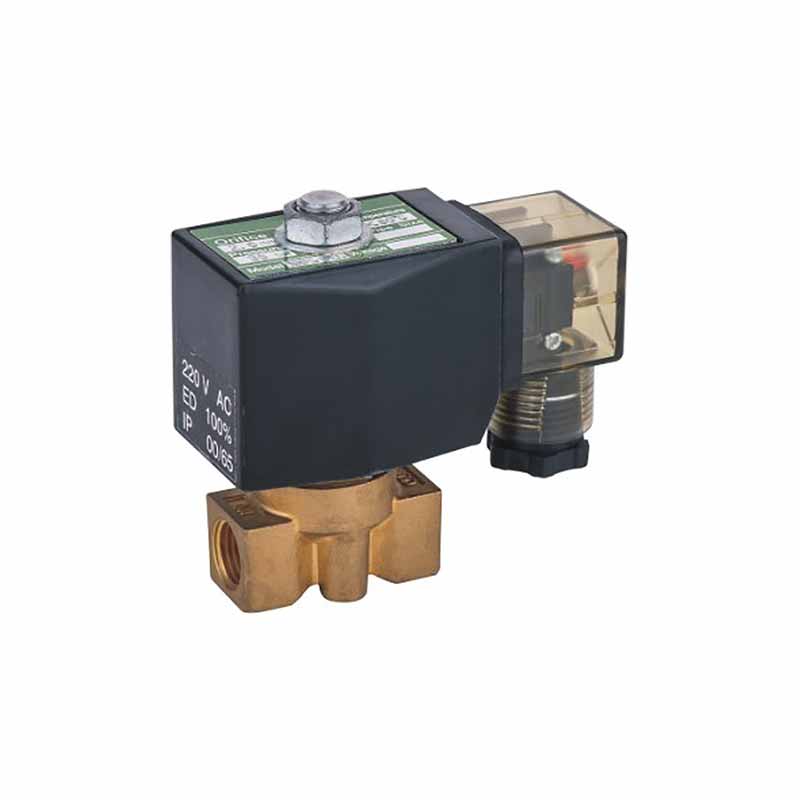

2W Two-Position Two-Way Direct-Acting Solenoid Valve
Classification:Solenoid Valves

2W Two-Position Two-Way Direct-Acting Solenoid Valve

Feature:

We are factory for water air gas oil Mini small mini small 2 ways brass water solenoid valve is folowing specifition

Thread Option: G and NPT

Standard Voltage Option: DC12V,DC24V,AC110V,AC220V

Material Option: Plastic,Brass

Oil Seal Option:NBR,VITON

Get a Quote

Ordering Code

1W -  160  -  15  -  AC110V  - V
➊     ❷   ❸         ❹     ❺

Symbol Content
  Specification
2W Two-Position Two-Way Solenoid Valve-Direct-Acting
2/2 way Solenoid Valve (Direct Operated)

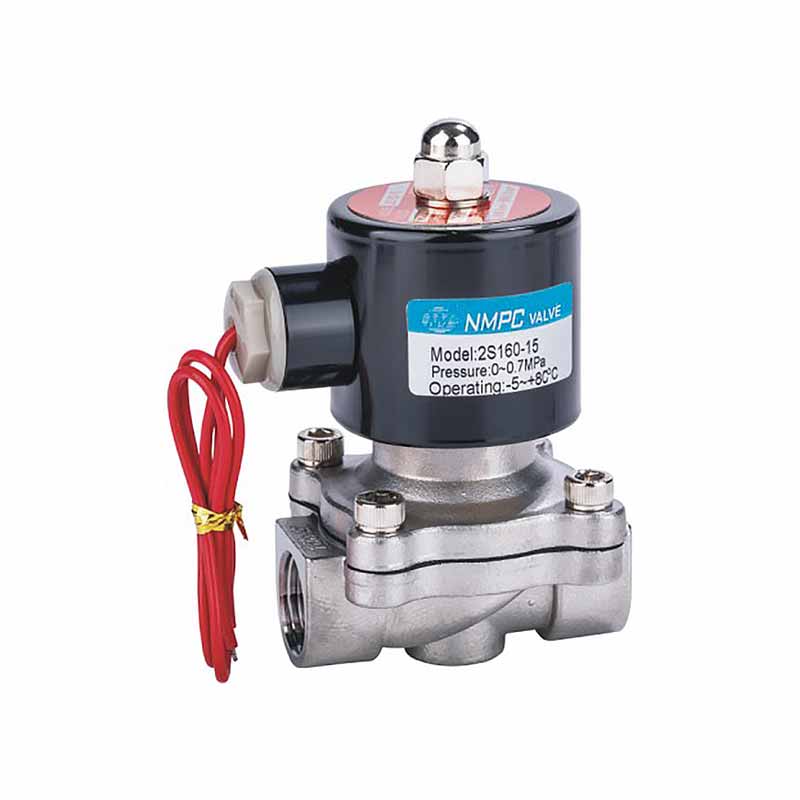

2S Stainless Steel Two-Position Two-Way Solenoid Valve-Direct Acting
2/2 way Stainless Steel Solenoid Valve (Direct Operated)
Orifice size
160 16mm
200 20mm
250 25mm
350 35mm
400 40mm
500 50mm
Port size
10 G3/8"
15 G1/2"
20 G3/4"
25 G1"
35 G11/4"
40 G11/2"
50 G2"
Coil voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC220V 50Hz/60Hz
Standatd Voltage
Blank Pipe connection type
V

5/2 way plate connection type
5/3 way plate connection type

Specification

Model

2W025-06

2W025-08

2W040-10

 2WH012-06

 2WH012-08

 2WH020-10

Port Size

G1/8"

G1/4"

G3/8"

G1/8"

G1/4"

G3/8"

Orifice Size

2.5

4.0

1.2

1.2

2.0

CV Value

0.23

0.60

0.05

0.05

0.15

Working Medium

Air,Water,Oil,Gas

Motion Pattern

Direct acting

Type

Normally  Closed

Working-pressure

Air,Water,Oil,Gas: 0~0.7MPa

Air, Water, Oil:0~2.0MPa

Max. Pressure Resistance

1.0MPa

3.5MPa

Operating temperature

NBR for-5-80oC and EPDM,VITON for-5-150 oC

Voltage Range

±10%

Material of Body

Brass or Stanless steel

Material Oil Seal

NBR,EPDM,VITON or SI
