Custom CQMB Thin Cylinder With Guide Rod

Home / Product / Air Cylinders / Linear Cylinders / CQMB Thin Cylinder With Guide Rod
  • CQMB Thin Cylinder With Guide Rod

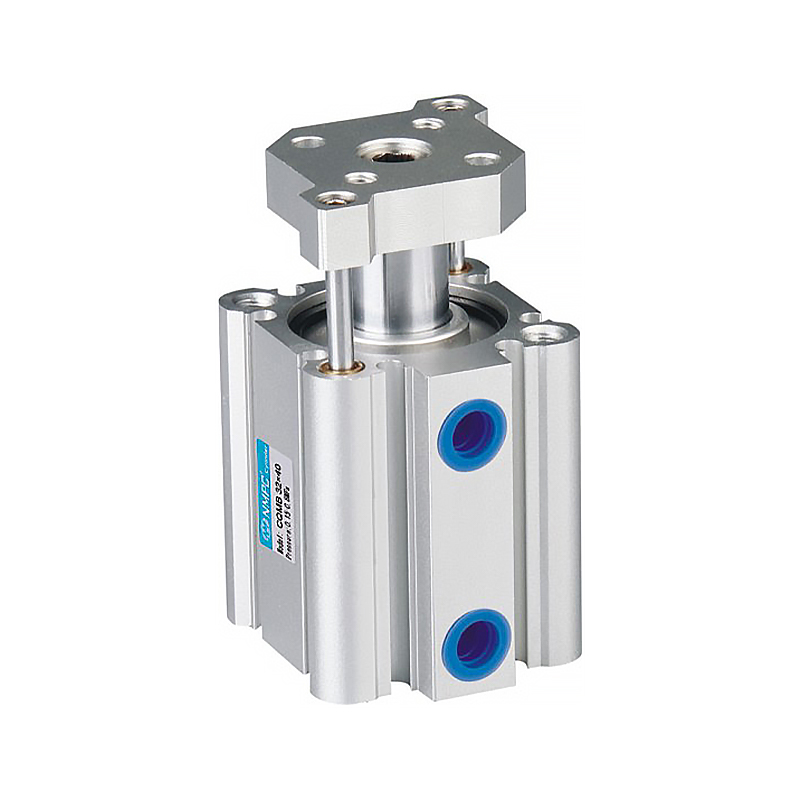

CQMB Thin Cylinder With Guide Rod
Classification:Linear Cylinders

CQMB Thin Cylinder With Guide Rod

Feature:

1. Guide rod type compact cylinder

2. Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100

3. Standard strokes (mm): 5 to 100

4. 4 times the lateral load resistance of the CQ2K

5.Non-rotating accuracy 0.2 or less

6. Built-in guide rod in the CQS and CQ2 series compact cylinders.

7. Non-rotating accuracy: ±0.2° or less

8. Lateral load resisting 2 to 4 times ∗ Compared to compact cylinder
Series CQ

9. Load can be directly mounted.

10. Mounting dimensions compatible with the CQS and CQ2 series.

Get a Quote

Ordering Code

C D Q M  B - 20  □ - 10 - M9B S
➊   ❷  ❸       ❹   ❺          ❻             ❼

Symbol Content
  Attach magnet
Blank Without attach magnet
D Attach magnet
Installation type
B Through(Standard)
A (Φ32~Φ10) Screw hole at both ends(Φ32-Φ100)
Bore
12 12mm
16 16mm
20 20mm
25 25mm
32 32mm
40 40mm
50 50mm
63 63mm
80 80mm
100 100mm
Thread type
Blank M Thread Φ12~Φ25
Rc Φ32~Φ100
TN NPT Φ32~Φ100
TF G Φ32~Φ100
32 non magnetic switch,M thread when the stroke is 5mm.
Stroke
Sensor switch model
Blank no magnetic switch
Magnetic switch model see stroke / magnetic switch model table
Without auto switch
Blank 2
S 1
N N

Specification

Bore size (mm)

12

16

20

25

32

40

50

63

80

100

Fluid

Air

Action

Double acting, single rod

Minimum operating pressure

0.12 Mpa

0.1 Mpa

Maximum operating pressure

1.0 Mpa

Proof pressure

1.5 MPa

Ambient and fluid temperature

 -20 to 80°C (No freezing)

Cushion

Rubber bumper on both ends

Lubrication

Non-lube

Port size

M5x0.8

M6x1.0

M8x1.25

M10x1.5

M12x1.7
