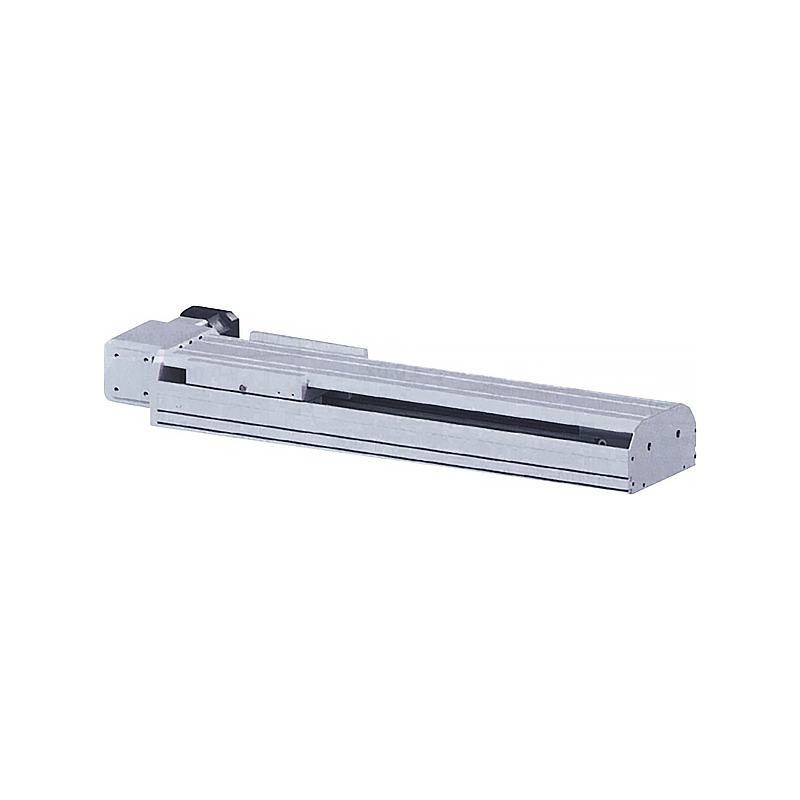

HT Electric Actuator
Classification:Linear Cylinders

HT Electric Actuator

Feature:
Get a Quote

Ordering Code

HT-W202-P120-N-S300-4P-LM-IS-S-1M-B-G10-External lock
➊   ❷  ❸       ❹   ❺          ❻   ❼ ❽ ❾ ❿

Symbol Content
 Series Name
HT Semi-Dense Belt Drive Module
The Width Of The Sliding Table
W70(mm)W100(mm)W100H(mm)W134(mm)W178(mm)w202(mm)
Belt Lead
Repeat Positioning Accuracy Level
N Level ±0.008mm  P Grade ±0.008mm  Is Not Marked As N Grade
Effective Itinerary (Can Be Customized According To Needs)
Number Of Single-Axis Sliders: 1p: Single Slider 2p: Double Sliders 4p: Four Sliders
Motor Installation Method
Lm: Indirect Motor To The Left Rm: Indirect Motor To The Right Bm: Motor Indirect Down Blm: Motor Indirect Down To Left
Brm: Motor Indirectly Rotates Down To Right Dm: Motor Indirectly Rotates Up
Dlm: Motor Indirectly Rotates Up To Left Drm: Motor Indirectly Rotates Up To Right
Photoelectric Switch (Positive/Negative/Origin)
s: Built-In Los: Externally Attached To The Left
Pos: Externally Mounted On The Right Ns: Not Required
Motor Brand
S: Sanyo M: Mitsubishi Y: Yaskawa P: International F: Fuji T: Delta K: Taifeng
Motor Power
1M: 75ow 2M: 400w  3M: 200W 4M: 100w  5M:Step Motor
11 Whether The Motor Is Braked
B: With Brakes, Unmarked: Without Brakes
12 Reduction Ratio
G3(1:3)   G5(1:5)  G10(1:10)
13 Internal And External Lock: External Lock And Internal Lock
