Custom DNC ISO6431Standard Cylinder

Home / Product / Air Cylinders / Linear Cylinders / DNC ISO6431Standard Cylinder
  • DNC ISO6431Standard Cylinder

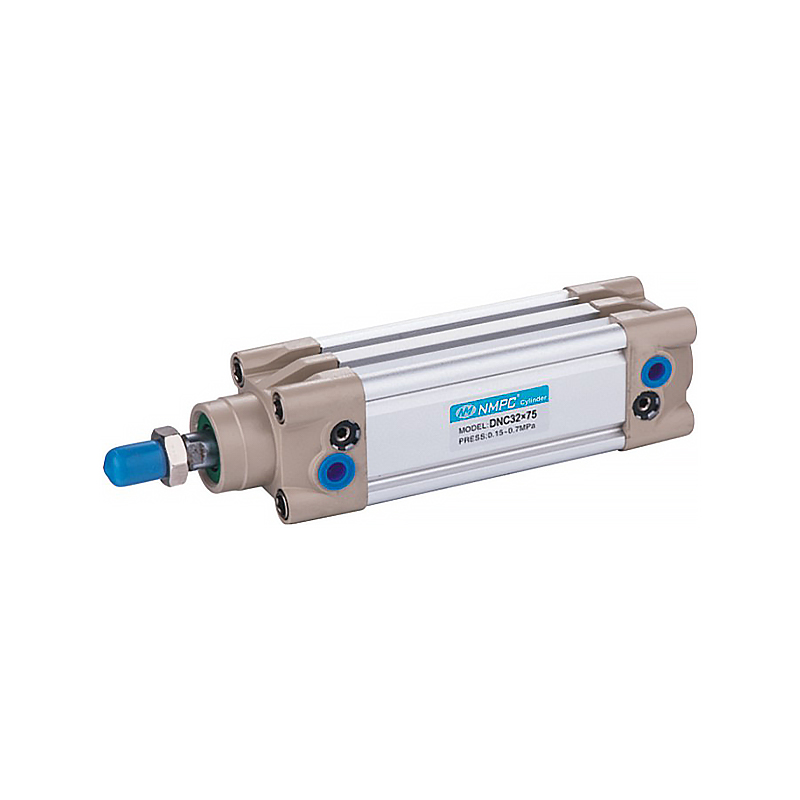

DNC ISO6431Standard Cylinder
Classification:Linear Cylinders

DNC ISO6431Standard Cylinder

Feature:

NC series pneumatic cylinder is according to ISO15552 standard.

Nice replacement for FESTO cylinder.

Standard design, simple structure, low starting pressure, smooth motion

The seal import from Japan.

Profile slot for proximity sensors and air connections on one side.

Using self-lubricating bearing, the piston rod is lubrication free.
CNC machined, all of parts we will do full test before shipment to control the quality.

long stroke pneumatic compact cylinders

iso standard pneumatic cylinders

Get a Quote

Ordering Code

SI-D- 50 x50-10-S-LB
➊    ❷   ❸  ❹❺         ❻   ❼

Symbol Content
  Series
DNC Standard double acting
DNCD Double shaft double acting
DNCJ Double-shaft with adjustable stroke type
Bore
Stroke
❹Adjustable Stroke
25 25mm
50 50mm
75 75mm
Magnet
S With magnet
Blank Without magnet
Mountings
Blank Basic mountings
LB Front and back mounting
FA Front mounting flange
FB Back mounting flange
CA Back hinge
CB Back hinge
YB Middle swing

Specification

Specifications

Bore(mm)

32

40

50

63

80

100

Working medium

Filtered Air

Motion pattern

Double Action

Compression Pressure

1.5MPa

Max. Operating Pressure

1.0MPa

Min. Operating Pressure

0.1MPa

Buffer

Air Buffer(Standard)

Condition Temperature

5~60°C

Operating Speed

50~500mm/s

Margin of Stroke Error (mm)

0~250 251~1000 1001~1500

Operating Life

Not less than 4000Km

Lubricate

Not Necessary+1.0

Joint Pipe Bore

1/8″

1/4″

3/8″

1/2″
