Custom 4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve

Home / Product / Valves / Directional Control Valves / 4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve
  • 4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve
  • 4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve

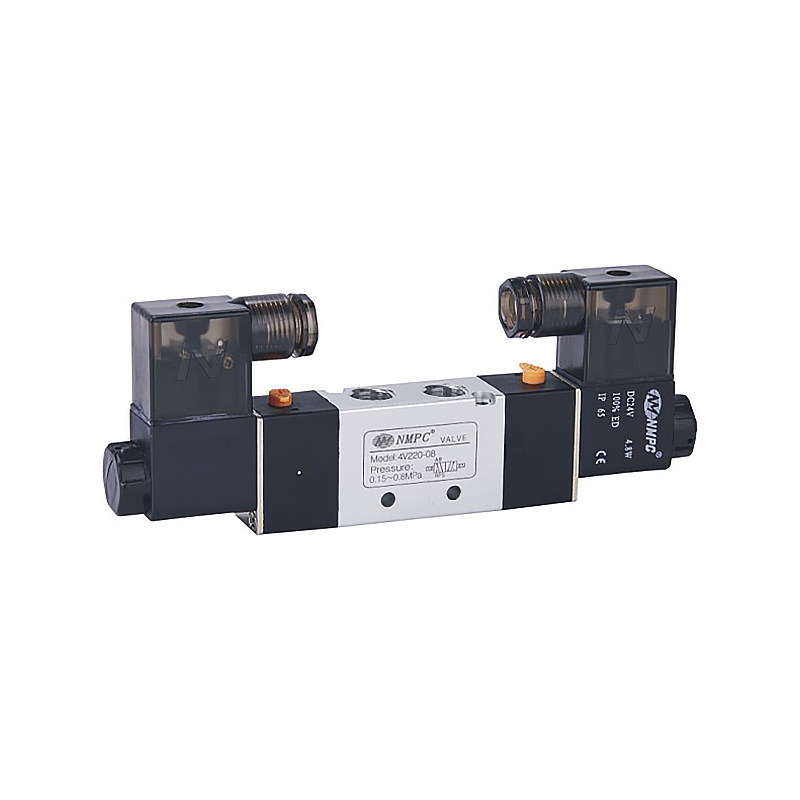

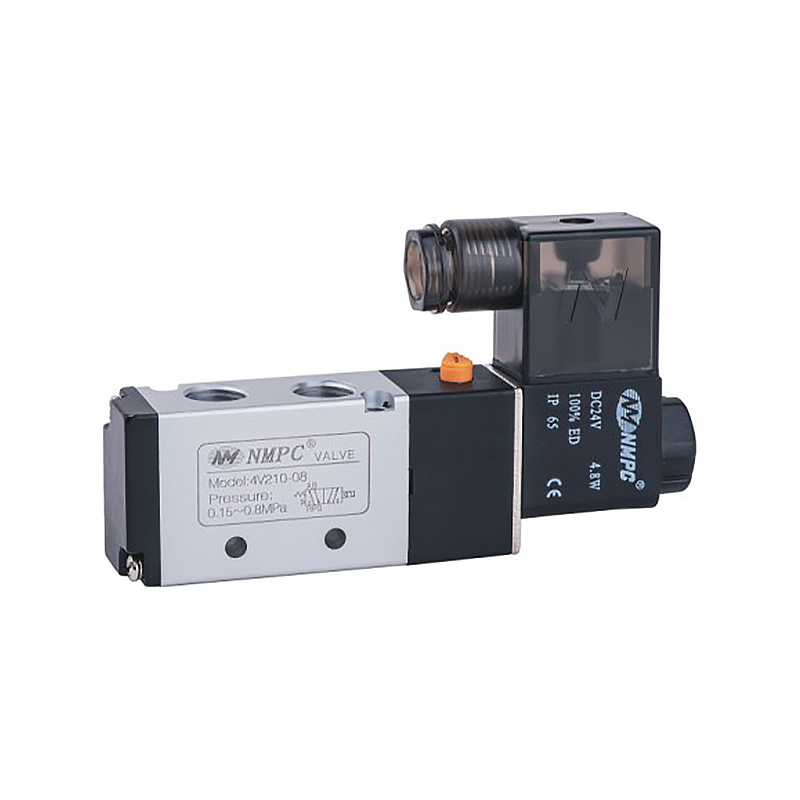

4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve
Classification:Directional Control Valves

4V200/4A200/3V200/3A200 Solenoid Valve, Pneumatic Valve

Feature:

10:single-head  double-position

20:double-head  double-position

30C:double-head three-position close type

30E:double-head three-position open type

30P:double-head three-position pressure close type

Get a Quote

Ordering Code

4V  2  10  -  08  B  -  AC220V  -  W
➊   ❷  ❸       ❹   ❺          ❻             ❼

Symbol Content
  Specification
4V 5/2(3) way solenoid valve
4A 5/2(3) way pneumaticcontrol valve
3V 3/2 way solenoid valve
3A 3/2 way pneumatic control valve
Series
300 Series
Coil and position
10 Single-head double-position
20 Double-head double- position
30C Double-head three. position close centre
30E Double head three position exhaust centre
30P Double-head three position Pressure centre
Port size
06 1/8"
08 1/4"
Joint pipe form and inital state
Blank Pipe connection type
B

5/2 way plate connection type
5/3 way plate connection type
NC 3/2 way normal close type
NO 3/2 way normal open type
Coil voltage
DC12V DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
Wiring
Blank Without light terminal
LD Brown with light termial
LD1 White with light terminal
W Lead wire

Specification

Type 4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
Fluid Air
Action internally piloted
Type of actuation 5 port 2 position 5 port 3 position 5 port 2 position 5 port 3 position
Orifice size 14mm(CV=0.78) 12mm(CV=0.67) 16mm(CV=0.89) 12mm(CV=0.67)
Port size in=out=1/4     exhaust=1/8
Lubrication not required
Operating pressure 0.15~0.8MPa
Proof pressure 1.2MPa
Working temperature ~5~60°C
Voltage fluctuation ~15%±10% of rate voltage
Power consumption AC220V:2.0VA, AC110V:2.5VA,  DC24V:3.0W, DC12V:2.5W
Insulation F classs
Protection IP65(DIN40050)
Electrical entry DIN terminal
Max.operating frequency 5Hz 3Hz 5Hz 3Hz
Min.activating time 0.05 second
Weight 220g 320g 400g 400g 400g 220g 320g 400g 400g 400g

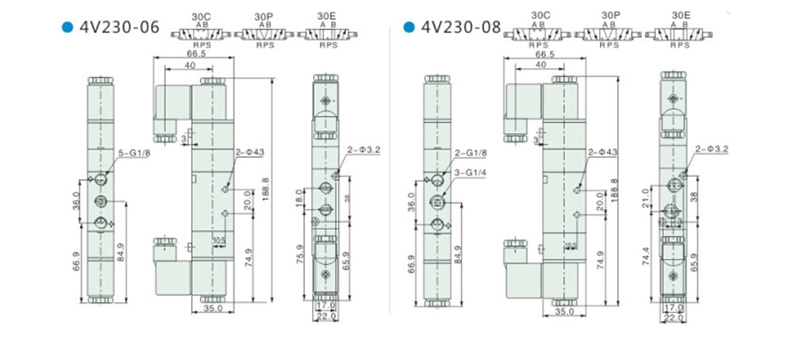

Overall Dimension Drawing(mm)
