Custom 4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve

Home / Product / Valves / Directional Control Valves / 4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve
  • 4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve
  • 4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve
4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve
Classification:Directional Control Valves

4V300/4A300/3V300/3A300 Solenoid Valve, Pneumatic Valve

Feature:

The normal use of 10 million times above life.
low power consumption, quick response.
Can work long time no damage

Oil Seal frictional resistance is small, increase oil seal life.

DC 12V Solenoid Valve 4V110-06
1. 5/2 way solenoid valve
2. ISO9001:2008 & CE approved
3. Coils made by full-automatic machine

Get a Quote

Ordering Code

4V  3  10  -  10  B  -  AC220V  -  W
➊   ❷  ❸       ❹   ❺          ❻             ❼

Symbol Content
  Specification
4V 5/2(3) way solenoid valve
4A 5/2(3) way pneumaticcontrol valve
3V 3/2 way solenoid valve
3A 3/2 way pneumatic control valve
Series
300 Series
Coil and position
10 Single-head double-position
20 Double-head double- position
30C Double-head three. position close centre
30E Double head three position exhaust centre
30P Double-head three position Pressure centre
Port size
08 1/4"
10 3/8"
Joint pipe form and inital state
Blank Pipe connection type
B

5/2 way plate connection type
5/3 way plate connection type
NC 3/2 way normal close type
NO 3/2 way normal open type
Coil voltage
DC12V DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
Wiring
Blank Without light terminal
LD Brown with light termial
LD1 White with light terminal
W Lead wire

Specification

Model 4V310-08 4V320-08 4V330C -08 4V330E -08 4V330P-08 4V310-10 4V320-10 4V330C -10 4V330E -10 4V330P-10
A number of pass Two position five -way Three position five -way Two position five -way Three position five - way
Etective sectional area 25mm²(CV=1.40) 18mm²(CV=1.00) 30mm²(CV=1.68) 18mm²(CV=1.00)
Model 3V310-08 3V320-08 3A310-08 3A320-08 3V310-10 3V320-10 3A310-10 3A320-10
A number 01 pass Two position three -way Two position three -way
Elective sectional area 25mm²(CV=1.40) 30mm²(CV=1.68)
Port size Air inlet=Air outlet=Exhaust=G1/4* Air inlet=Air outlet=G3/8* Exhaust=G1/4*
Working medium 40 Micron Filtered Air
Action mode Internally pllot-actuated
The use of pressure 0.15一0.8MPa
Max. proof pressure 1.2MPa
Working temperature -5- 50℃
Voltage range 土10% of rated vollage
Power consumption AC:5.5VA DC: 4.8W
Insulation& protection class Class F. IP65
Connection form Line type or terminal type
Highest action frequency 5 cycle/second
Shortest excitation time 0.05 second

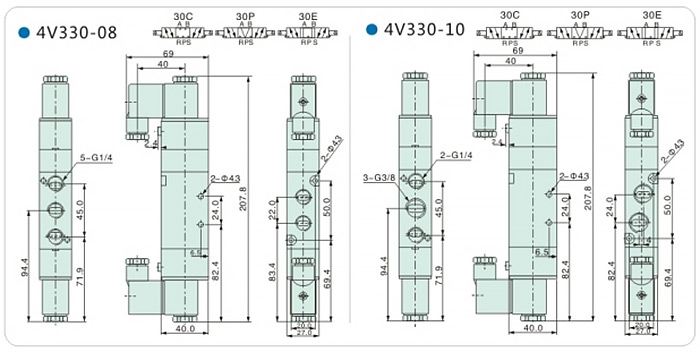

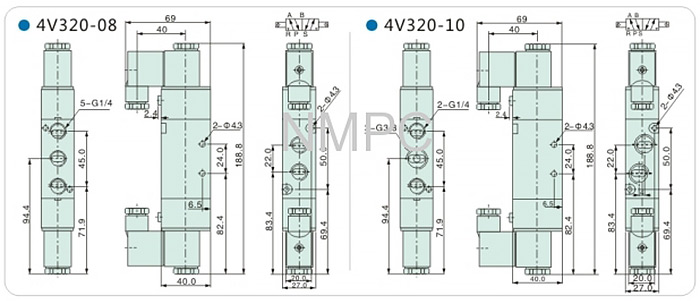

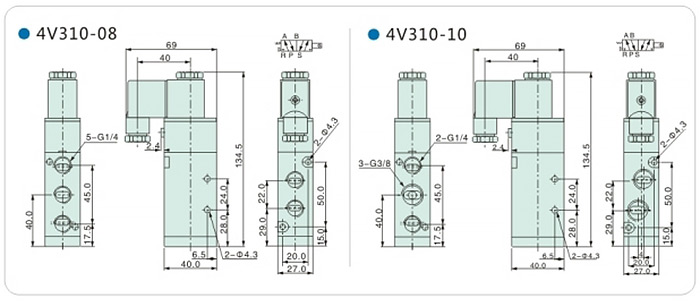

Overall Dimension Drawing(mm)
